The ILayerCreator interface is implemented by each MyCaffe.layers.x layer extension dll and is used to create new instances of the layers supported by each layer extension dll. More...

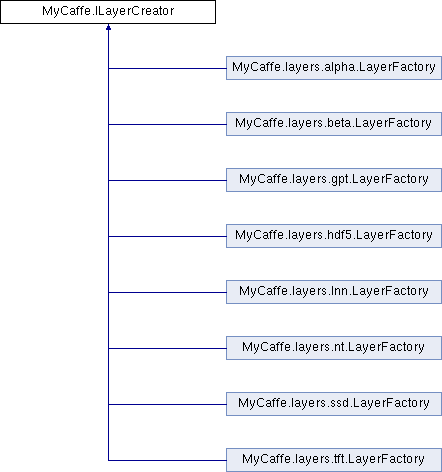

Inheritance diagram for MyCaffe.ILayerCreator:

Public Member Functions
Layer< double >	CreateDouble (CudaDnn< double > cuda, Log log, LayerParameter p, CancelEvent evtCancel, IXDatabaseBase db)
	Create the layers when using the double base type. More...

Layer< float >	CreateSingle (CudaDnn< float > cuda, Log log, LayerParameter p, CancelEvent evtCancel, IXDatabaseBase db)
	Create the layers when using the float base type. More...

Detailed Description

The ILayerCreator interface is implemented by each MyCaffe.layers.x layer extension dll and is used to create new instances of the layers supported by each layer extension dll.

Definition at line 18 of file Interfaces.cs.

Member Function Documentation

◆ CreateDouble()

Layer< double > MyCaffe.ILayerCreator.CreateDouble	(	CudaDnn< double >	cuda,
		Log	log,
		LayerParameter	p,
		CancelEvent	evtCancel,
		IXDatabaseBase	db
	)

Create the layers when using the double base type.

Parameters

cuda	Specifies the connection to the low-level CUDA interfaces.
log	Specifies the output log.
p	Specifies the layer parameter.
evtCancel	Specifies the cancellation event.
db	Specifies an interface to the in-memory database, who's use is optional.

Returns: If supported, the layer is returned, otherwise null is returned.

Implemented in MyCaffe.layers.alpha.LayerFactory, MyCaffe.layers.beta.LayerFactory, MyCaffe.layers.gpt.LayerFactory, MyCaffe.layers.hdf5.LayerFactory, MyCaffe.layers.lnn.LayerFactory, MyCaffe.layers.nt.LayerFactory, MyCaffe.layers.ssd.LayerFactory, and MyCaffe.layers.tft.LayerFactory.

◆ CreateSingle()

Layer< float > MyCaffe.ILayerCreator.CreateSingle	(	CudaDnn< float >	cuda,
		Log	log,
		LayerParameter	p,
		CancelEvent	evtCancel,
		IXDatabaseBase	db
	)

Create the layers when using the float base type.
