Specifies the parameters for the ConcatLayer More...

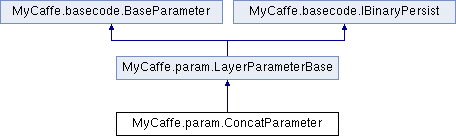

Inheritance diagram for MyCaffe.param.ConcatParameter:

Public Member Functions
	ConcatParameter ()
	Constructor for the parameter. More...

override object	Load (System.IO.BinaryReader br, bool bNewInstance=true)
	Load the parameter from a binary reader. More...

override void	Copy (LayerParameterBase src)
	Copy on parameter to another. More...

override LayerParameterBase	Clone ()
	Creates a new copy of this instance of the parameter. More...

override RawProto	ToProto (string strName)
	Convert the parameter into a RawProto. More...

Public Member Functions inherited from MyCaffe.param.LayerParameterBase
	LayerParameterBase ()
	Constructor for the parameter. More...

virtual string	PrepareRunModelInputs ()
	This method gives derivative classes a chance specify model inputs required by the run model. More...

virtual void	PrepareRunModel (LayerParameter p)
	This method gives derivative classes a chance to prepare the layer for a run-model. More...

void	Save (BinaryWriter bw)
	Save this parameter to a binary writer. More...

abstract object	Load (BinaryReader br, bool bNewInstance=true)
	Load the parameter from a binary reader. More...

Public Member Functions inherited from MyCaffe.basecode.BaseParameter
	BaseParameter ()
	Constructor for the parameter. More...

virtual bool	Compare (BaseParameter p)
	Compare this parameter to another parameter. More...

Static Public Member Functions
static ConcatParameter	FromProto (RawProto rp)
	Parses the parameter from a RawProto. More...

Static Public Member Functions inherited from MyCaffe.basecode.BaseParameter
static double	ParseDouble (string strVal)
	Parse double values using the US culture if the decimal separator = '.', then using the native culture, and if then lastly trying the US culture to handle prototypes containing '.' as the separator, yet parsed in a culture that does not use '.' as a decimal. More...

static bool	TryParse (string strVal, out double df)
	Parse double values using the US culture if the decimal separator = '.', then using the native culture, and if then lastly trying the US culture to handle prototypes containing '.' as the separator, yet parsed in a culture that does not use '.' as a decimal. More...

static float	ParseFloat (string strVal)
	Parse float values using the US culture if the decimal separator = '.', then using the native culture, and if then lastly trying the US culture to handle prototypes containing '.' as the separator, yet parsed in a culture that does not use '.' as a decimal. More...

static bool	TryParse (string strVal, out float f)
	Parse doufloatble values using the US culture if the decimal separator = '.', then using the native culture, and if then lastly trying the US culture to handle prototypes containing '.' as the separator, yet parsed in a culture that does not use '.' as a decimal. More...

Properties
int	axis `[getset]`
	The axis along which to concatenate – may be negative to index from the end (e.g., -1 for the last axis). More...

uint?	concat_dim `[getset]`
	DEPRECIATED: alias for 'axis' – does not support negative indexing. More...

Additional Inherited Members
Public Types inherited from MyCaffe.param.LayerParameterBase
enum	LABEL_TYPE { NONE , SINGLE , MULTIPLE , ONLY_ONE }
	Defines the label type. More...

Detailed Description

Specifies the parameters for the ConcatLayer

See also: Deep Image Aesthetics Classification using Inception Modules and Fine-tuning Connected Layer by Xin Jin, Jingying Chi, Siwei Peng, Yulu Tian, Chaochen Ye, and Xiaodong Li, 2016.; Multi-path Convolutional Neural Networks for Complex Image Classification by Mingming Wang, 2015.; Rethinking the Inception Architecture for Computer Vision by Christian Szegedy, Vincent Vanhoucke, Sergey Ioffe, Jonathon Shlens, and Zbigniew Wojna, 2015.; Inception-v4, Inception-ResNet and the Impact of Residual Connections on Learning by Christian Szegedy, Sergey Ioffe, Vincent Vanhoucke, and Alex Alemi, 2015.

Definition at line 21 of file ConcatParameter.cs.

Constructor & Destructor Documentation

◆ ConcatParameter()

MyCaffe.param.ConcatParameter.ConcatParameter ( )

Constructor for the parameter.

Definition at line 27 of file ConcatParameter.cs.

Member Function Documentation

◆ Clone()

override LayerParameterBase MyCaffe.param.ConcatParameter.Clone ( )

virtual

Creates a new copy of this instance of the parameter.

Returns: A new instance of this parameter is returned.

Implements MyCaffe.param.LayerParameterBase.

Definition at line 76 of file ConcatParameter.cs.

◆ Copy()

override void MyCaffe.param.ConcatParameter.Copy ( LayerParameterBase src )

virtual

Copy on parameter to another.

Parameters

src	Specifies the parameter to copy.

Implements MyCaffe.param.LayerParameterBase.

Definition at line 68 of file ConcatParameter.cs.

◆ FromProto()

static ConcatParameter MyCaffe.param.ConcatParameter.FromProto ( RawProto rp )

static

Parses the parameter from a RawProto.

Parameters

rp	Specifies the RawProto to parse.

Returns: A new instance of the parameter is returned.

Definition at line 106 of file ConcatParameter.cs.

◆ Load()

override object MyCaffe.param.ConcatParameter.Load	(	System.IO.BinaryReader	br,
		bool	bNewInstance = `true`
	)

Load the parameter from a binary reader.

Parameters

br	Specifies the binary reader.
bNewInstance	When true a new instance is created (the default), otherwise the existing instance is loaded from the binary reader.

Returns: Returns an instance of the parameter.

Definition at line 56 of file ConcatParameter.cs.

◆ ToProto()

override RawProto MyCaffe.param.ConcatParameter.ToProto ( string strName )

virtual

Convert the parameter into a RawProto.

Parameters

strName Specifies the name to associate with the RawProto.

Returns: The new RawProto is returned.

Implements MyCaffe.basecode.BaseParameter.

Definition at line 88 of file ConcatParameter.cs.

Property Documentation

◆ axis

int MyCaffe.param.ConcatParameter.axis

getset

The axis along which to concatenate – may be negative to index from the end (e.g., -1 for the last axis).

Othe axes must have the same dimension for all the bottom blobs. By default, ConcatLayer concatentates blobs along the 'channels' axis 1.

Definition at line 39 of file ConcatParameter.cs.

◆ concat_dim

uint? MyCaffe.param.ConcatParameter.concat_dim

getset

DEPRECIATED: alias for 'axis' – does not support negative indexing.

Definition at line 49 of file ConcatParameter.cs.

The documentation for this class was generated from the following file:

C:/Data/Data/SS_Projects/Intelligence/GitHub/MyCaffe/MyCaffe/param/ConcatParameter.cs
